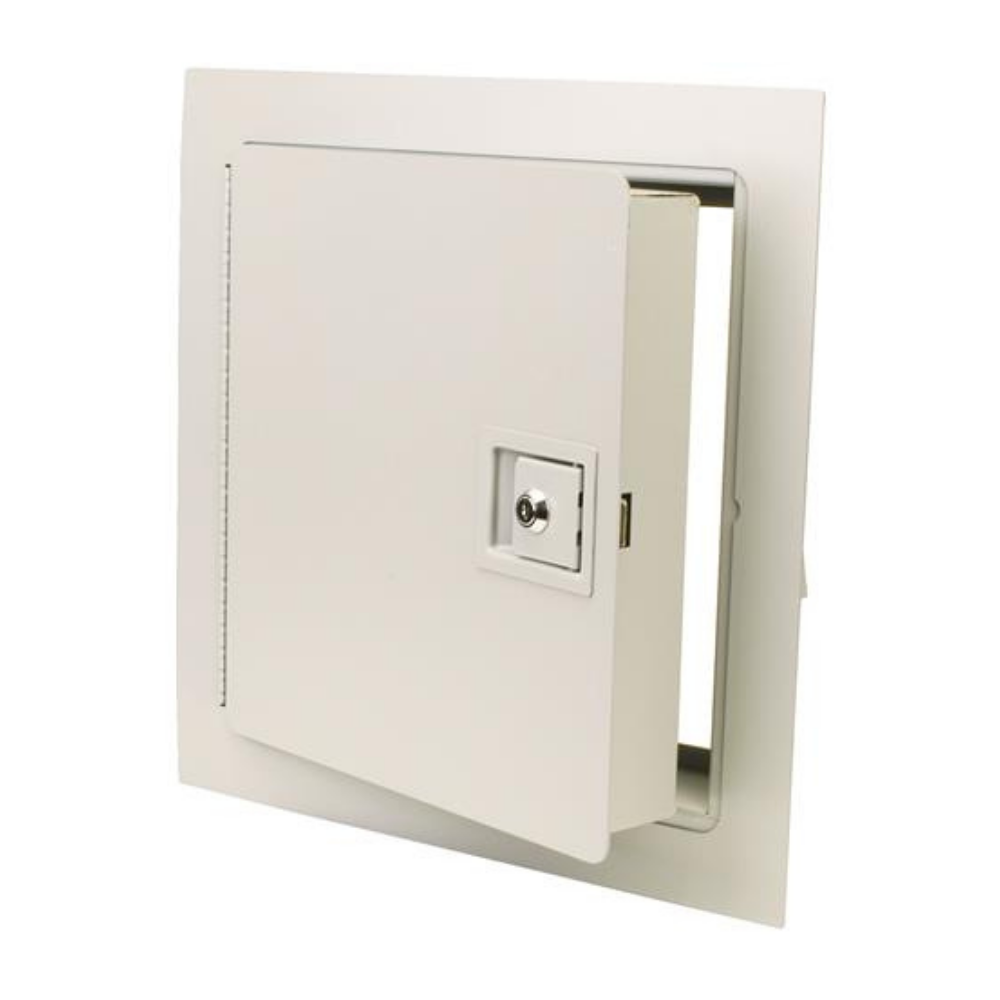

NOVA EXTREME 8010 for Walls & Ceilings

Construction

Door and Trim: 20 ga. steel door and 16 ga. steel trim 2 1/2” deep.

Finish: Primed white baked enamel, paintable surface.

Hinge: Continuous piano type hinge. Allows opening to 140°.

Lock: Self-latching keyed cylinder paddle latch. 2 keys per door keyed alike.

Ceiling Installation: Largest size acceptable is 24” x 36”

Insulation: 2” thick mineral wool.

Industrial insulation for optimal fire protection (rated noncombustible by NFPA Standard 220 when tested in accordance with ASTM E136 and withstands ASTEM E119) and superior sound control USG tested per ASTM C165: 8 pcf STC 15-2” thickness.

Options

Finishes:

• Stainless Steel Type 304 No. 4 Satin Finish Brushed.
• Stainless Steel Type 316 No. 4 Satin Finish Brushed

Locks:

• Key Cylinder Locks:  Keyed alike 2 keys per door.
• Mortise lock/Other.

Gasket:

• Hot Smoke Seal gasket all 4 sides

Custom Size:

• Custom sizes available.
