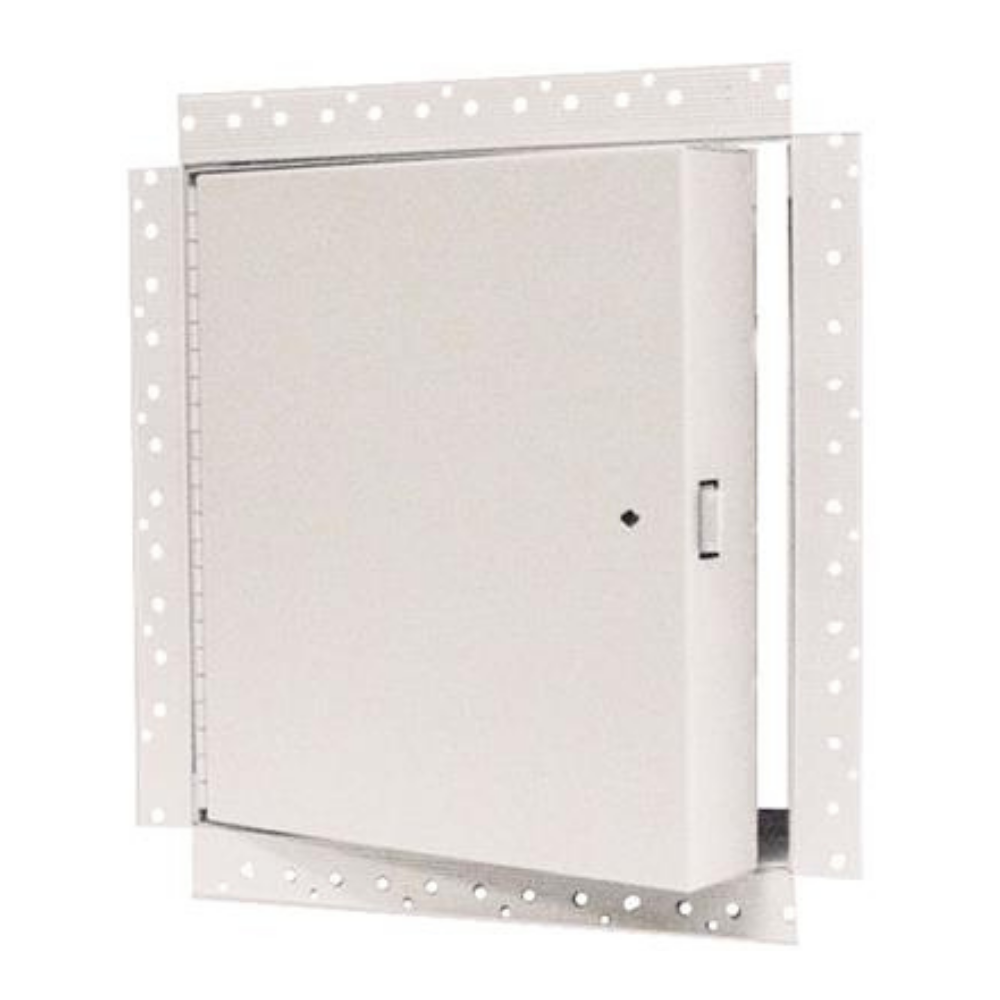

NOVA DW 8020 Drywall for Walls & Ceilings
Access door has rust resistant galvannealed steel to protect your interior access door from rust and deterioration.
- Sku: NOVA-DW-8020
Construction
Door and Trim: Door: 14 ga. steel, drywall bead; Trim: 16 ga. steel; 1” wide perforated flange of 24 ga. galvanized material for mounting purposes, 2 1/2” deep. Laser cut from one sheet of steel, no corner mitering.
Finish: Primed white baked enamel, paintable surface.
Hinge: Self-latching direct action latch, accepts both key and knurled knob.
Lock: Knurled knob lock w/1 Flush key.
Insulation: 2” thick mineral wool (ROXUL) in between two pieces of 22 ga. steel
Can be installed in the ceiling or wall (up to 24” x 48” ceiling). To comply with current fire regulations, largest size acceptable is 24” x 48”.
Options
Finishes:
- Stainless Steel Type 304 No. 4 Satin Finish Brushed.
- Stainless Steel Type 316 No. 4 Satin Finish Brushed.
Locks:
- Key Cylinder Locks: Keyed alike 2 keys per door.
- Mortise lock/Other.
Gasket:
-
Hot Smoke Seal gasket all 4 sides
Custom Size:
- Custom sizes available.
Sizes Available
| Model No. | Door Size W x H | Wall Opening | Paddle Latch | Ship Wt. Lbs. |
|---|---|---|---|---|
| NOVA 8020 | 8 x 8 | 8 1/4 x 8 1/4 | 1 | 8 |
| NOVA 8020 | 10 x 10 | 10 1/4 x 10 1/4 | 1 | 10 |
| NOVA 8020 | 12 x 12 | 12 1/4 x 12 1/4 | 1 | 12 |
| NOVA 8020 | 12 x 18 | 12 1/4 x 18 1/4 | 1 | 16 |
| NOVA 8020 | 12 x 24 | 12 1/4 x 24 1/4 | 1 | 19 |
| NOVA 8020 | 14 x 14 | 14 1/4 x 14 1/4 | 1 | 14 |
| NOVA 8020 | 16 x 16 | 16 1/4 x 16 1/4 | 1 | 17 |
| NOVA 8020 | 18 x 18 | 18 1/4 x 18 1/4 | 1 | 21 |
| NOVA 8020 | 18 x 24 | 18 1/4 x 24 1/4 | 1 | 26 |
| NOVA 8020 | 20 x 20 | 20 1/4 x 20 1/4 | 1 | 24 |
| NOVA 8020 | 20 x 24 | 20 1/4 x 24 1/4 | 1 | 30 |
| NOVA 8020 | 20 x 30 | 20 1/4 x 30 1/4 | 1 | 37 |
| NOVA 8020 | 22 x 22 | 22 1/4 x 22 1/4 | 1 | 28 |
| NOVA 8020 | 22 x 24 | 22 1/4 x 24 1/4 | 1 | 29 |
| NOVA 8020 | 22 x 30 | 22 1/4 x 30 1/4 | 2 | 39 |
| NOVA 8020 | 22 x 36 | 22 1/4 x 36 1/4 | 2 | 47 |
| NOVA 8020 | 24 x 24 | 24 1/4 x 24 1/4 | 1 | 32 |
| NOVA 8020 | 24 x 30 | 24 1/4 x 30 1/4 | 2 | 43 |
| NOVA 8020 | 24 x 36 | 24 1/4 x 36 1/4 | 2 | 48 |
| NOVA 8020 | 24 x 48 | 24 1/4 x 48 1/4*** | 2 | 62 |
| NOVA 8020 | 30 x 30* | 30 1/4 x 30 1/4*** | 2 | 48 |
| NOVA 8020 | 32 x 32* | 32 1/4 x 32 1/4*** | 2 | 55 |
| NOVA 8020 | 36 x 36* | 36 1/4 x 36 1/4*** | 2 | 67 |
| NOVA 8020 | 36 x 48* | 36 1/4 x 48 1/4*** | 2 | 88 |
| NOVA 8020 | 48 x 48* | 48 1/4 x 48 1/4*** | 2 | 104 |
| *Sizes available upon request | ||||
| **Special orders | ||||
| ***Wall installation ONLY |
