RGB AL 4013 Air & Dust

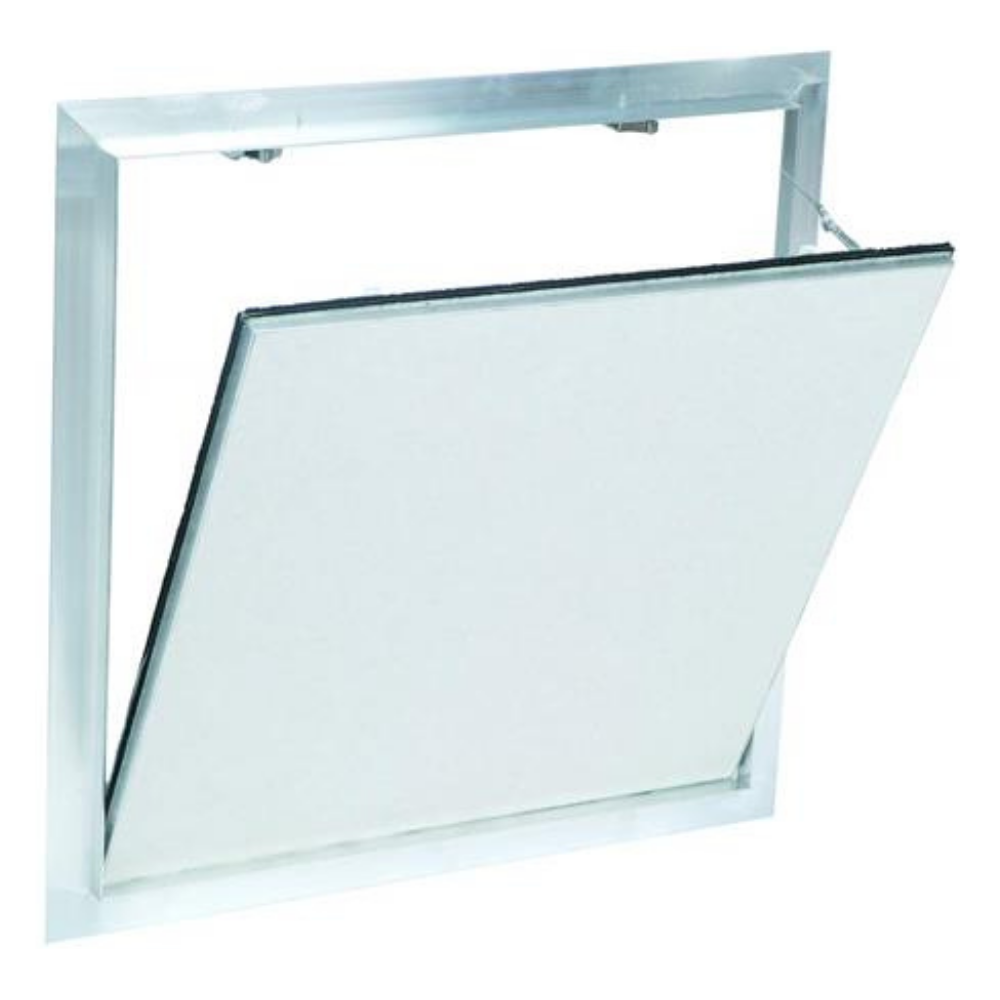

The Linhdor RGB AL 4013 is an air and dust resistant access door panel that ships complete with unique air and dust resistant brush seals. This access door/panel is specifically designed to limit and reduce the amount of air or dust leaving or entering the area in which it is located. Perfect for environments such as hospitals, maintenance rooms, laboratories, or any environment where air and dust resistance is necessary. Easy assembly.
- Sku: RGB-AL-4013
Construction
Door: Fully detachable door, corrosion resistant, welded lightweight aluminum frame. Ships with 1/2” or 5/8” drywall
Frame & Trim: 1 5/8” wide with outer and inner frame assembly consisting of high grade aluminum bonded with a unique welding process to ensure durability and quality
Finish: Primed white baked enamel, paintable surface.
Air & Dust Resistance: Heavy duty brush seals
Hinge: Concealed
Hinge Lock: Concealed touch snap latches
Can be installed in the ceiling or wall.
Options
Locks:
- Key Cylinder Locks – keyed alike 2 keys per door.
Color:
- Custom colors.
Custom Size:
- Custom sizes available.
Sizes Available
| Model No. | Door Size W x H | Wall Opening | Ship Wt. Lbs. |
|---|---|---|---|
| RGB AL 4013 | 8 x 8 | 8 3/8 x 8 3/8 | 12 |
| RGB AL 4013 | 12 x 12 | 12 3/8 x 12 3/8 | 14 |
| RGB AL 4013 | 16 x 16 | 16 3/8 x 16 3/8 | 17 |
| RGB AL 4013 | 18 x 18 | 18 3/8 x 18 3/8 | 19 |
| RGB AL 4013 | 20 x 20 | 20 3/8 x 20 3/8 | 25 |
| RGB AL 4013 | 24 x 24 | 24 3/8 x 24 3/8 | 34 |
| RGB AL 4013 | 24 x 36 | 24 3/8 x 36 3/8 | 41 |
